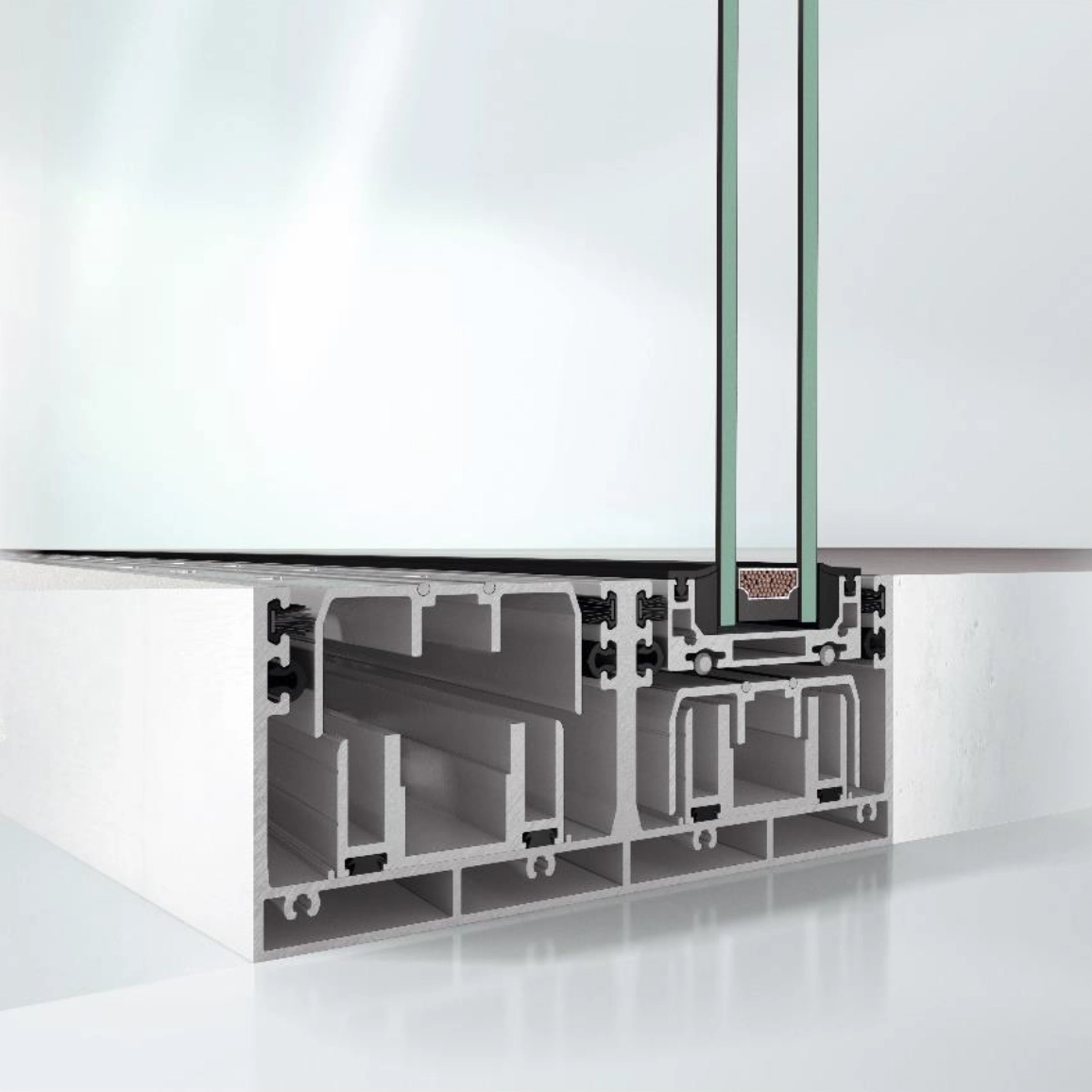

AS ICD 50.NI
- Wide Range of Track Typologies

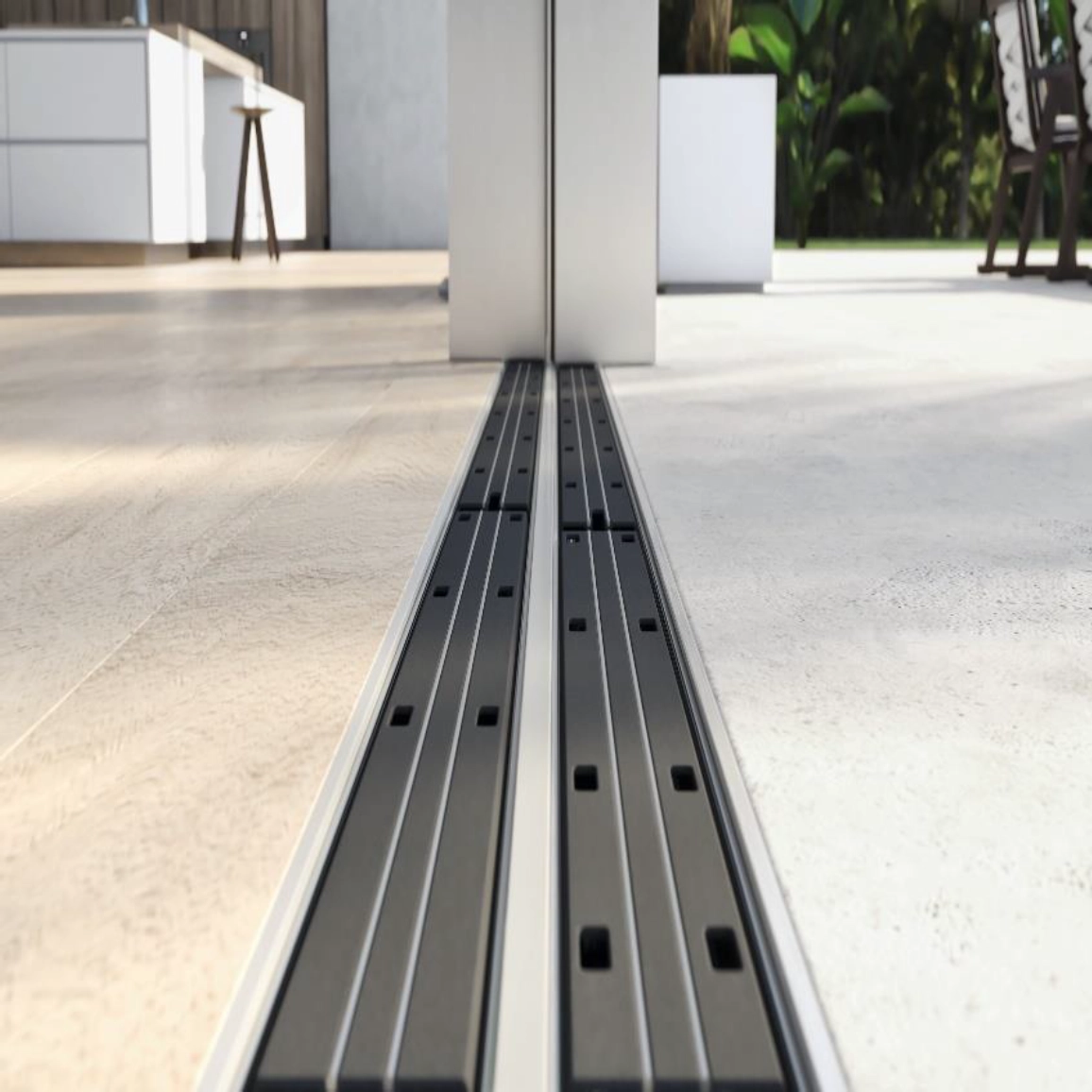

- Zero Level & HP Threshold Options

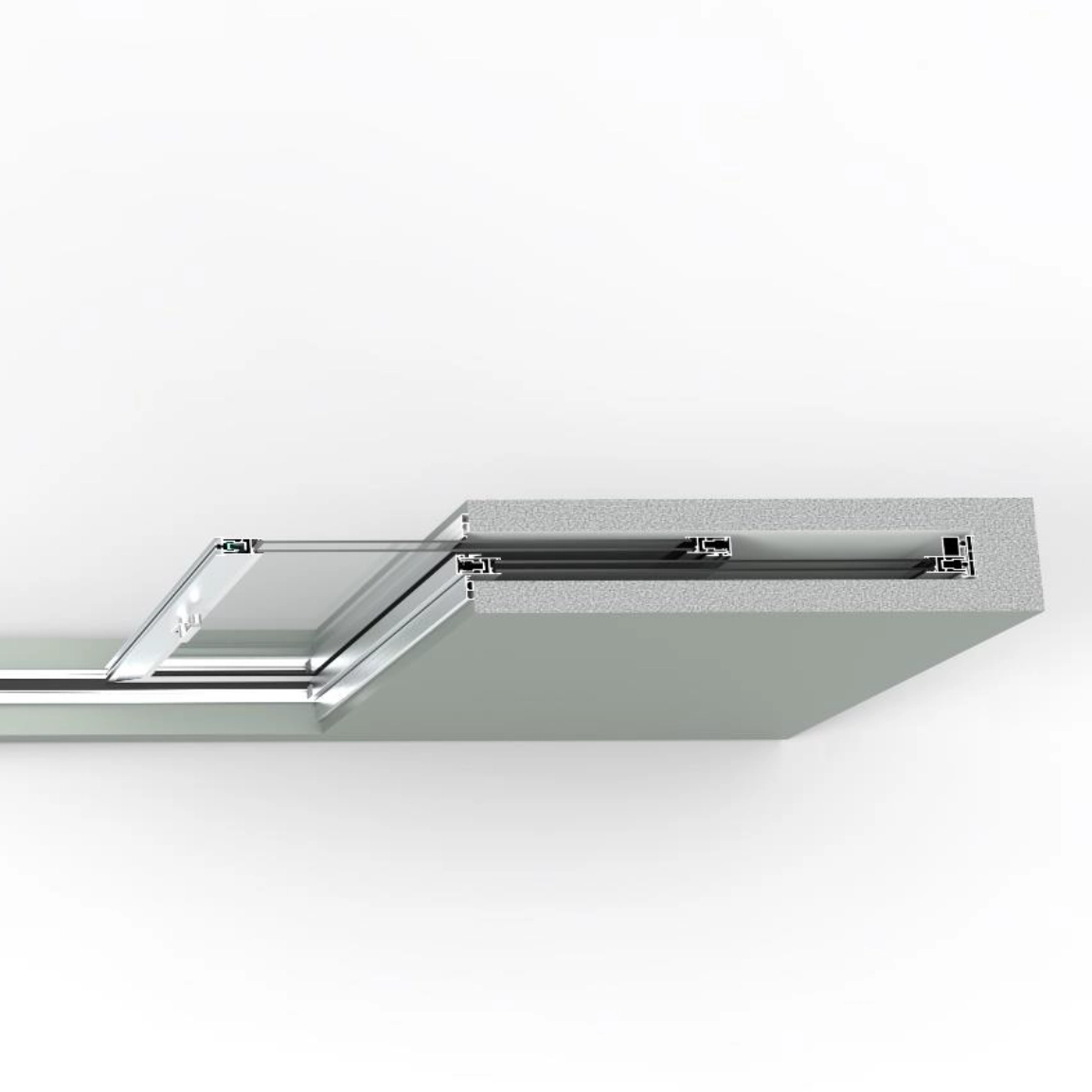

- In Wall Solution
- 90 Degree Corner Solution
- Narrow 40mm Interlock
- Concealed Screws
- Up to 4500mm Vent Height
- Up to 3000mm Vent Width
- 500kg Maximum Sash Weight
- 8m to 36mmmm Glass Thickness
- Up to 36db Acoustic Performance
- Sliding and Lift and Slide Options
- Mitre and Square Cut Options
- Up to E900 EN & 900Pa ASTM water tightness
- Up to Class 4 EN & 300Pa ASTM air tightness
- Wind Load resistance up to CE3000 EN & 3000Pa

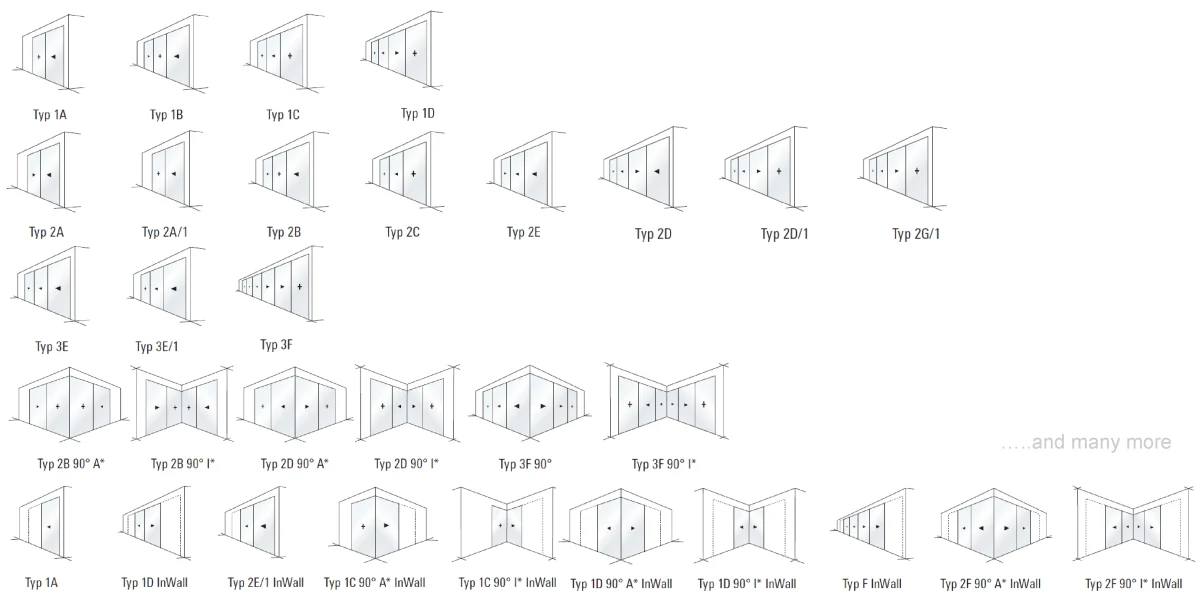

General Typology Overview
Interlock Options

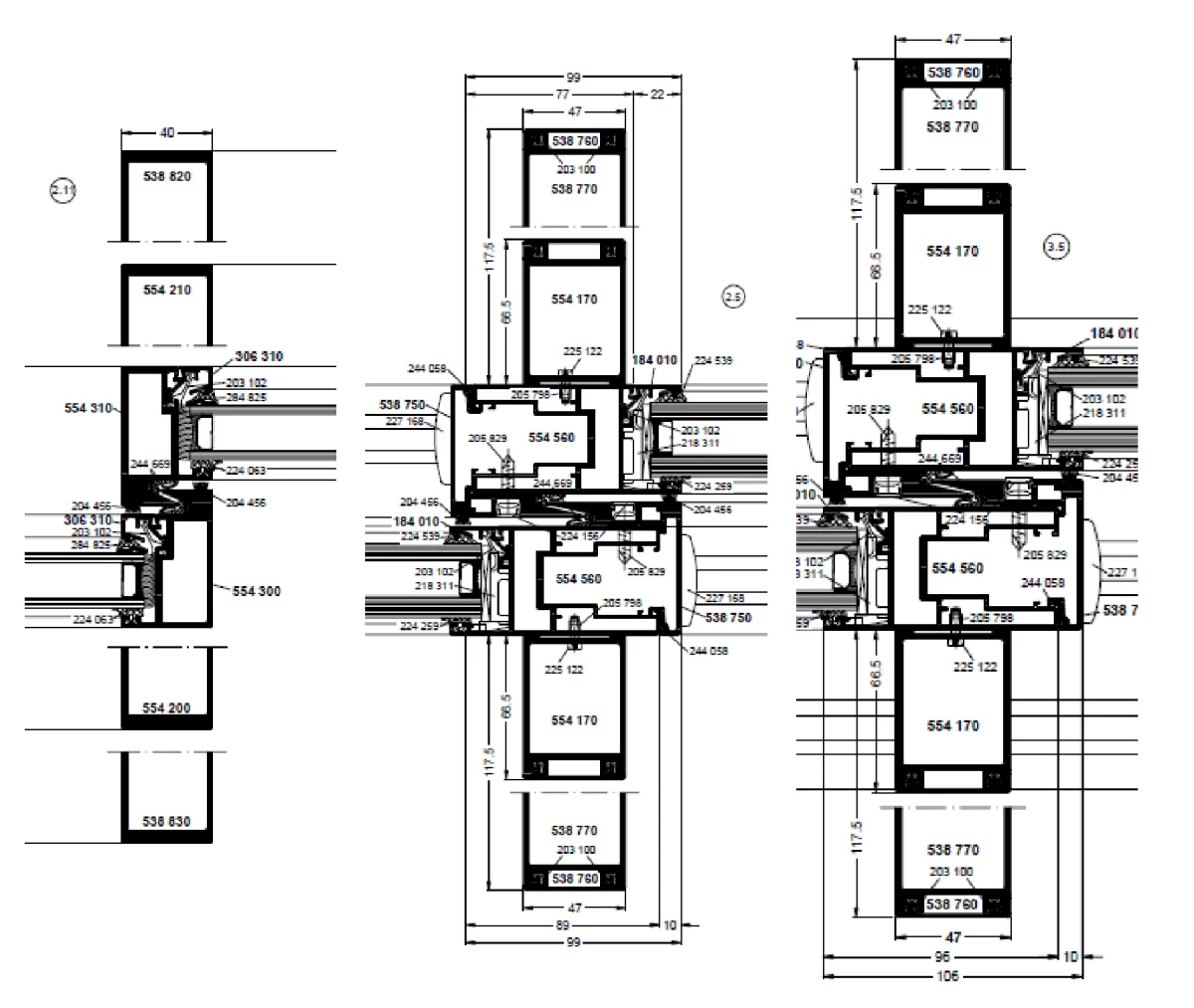

Interlock Profile – 40mm, 99mm & 106mm
Multitrack Solution

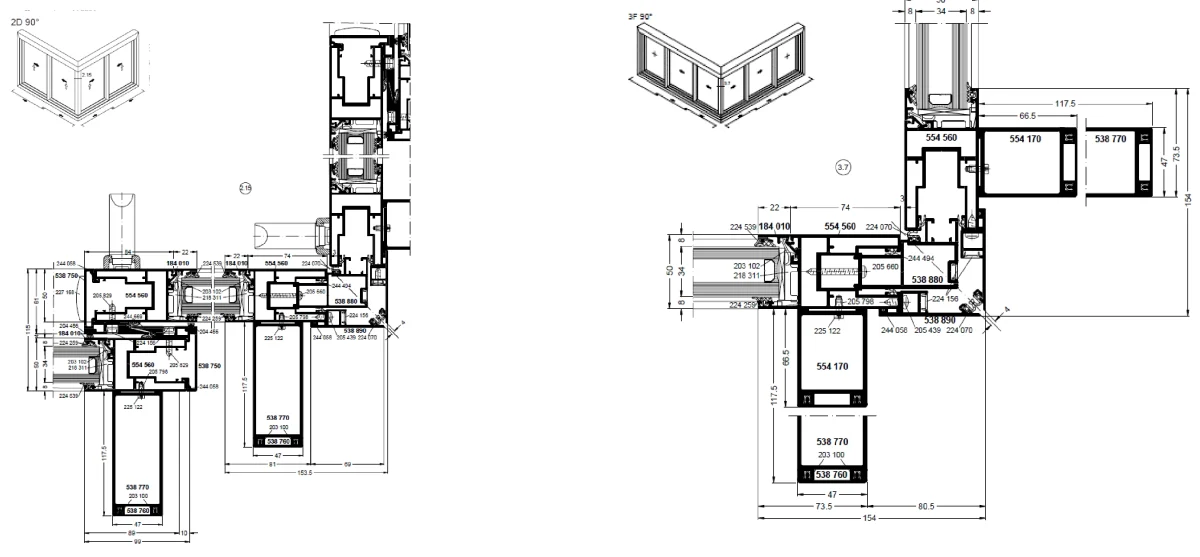

90° Outer Corner Solutions
System Test Performance

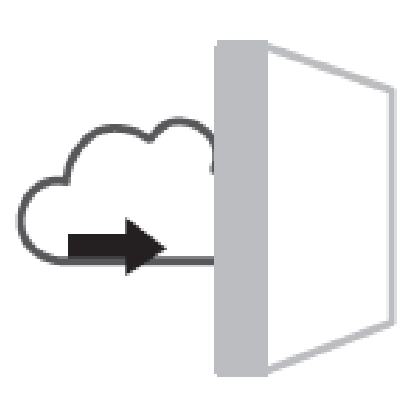

Windload resistance
3000 Pa / Class CE3000

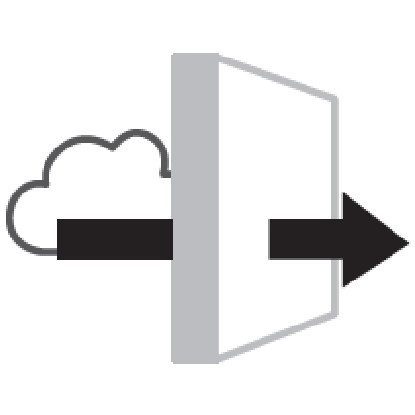

Air permeability
300 Pa / Class 4
Water tightness
900 Pa / Class E900

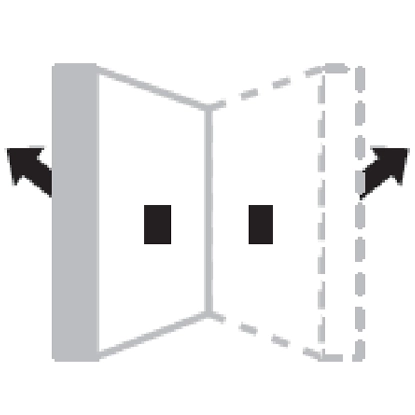

Durability
Up to 20,000 cycles
Accessories

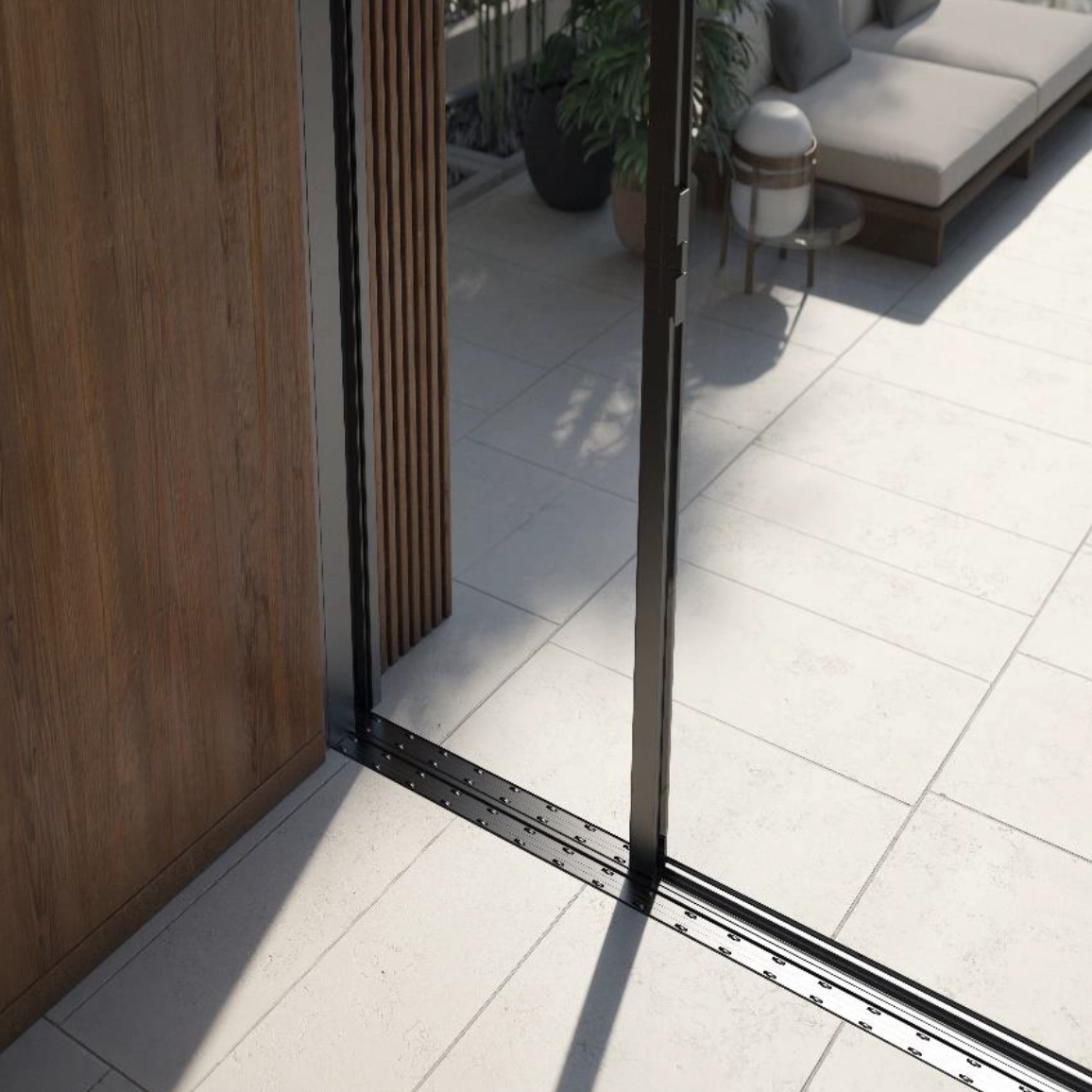

AS PD 70.NI
- Interlock sightlines 19mm & 25 mm
- 2 Track 2A & 2A/1 and 2G & 2G/1

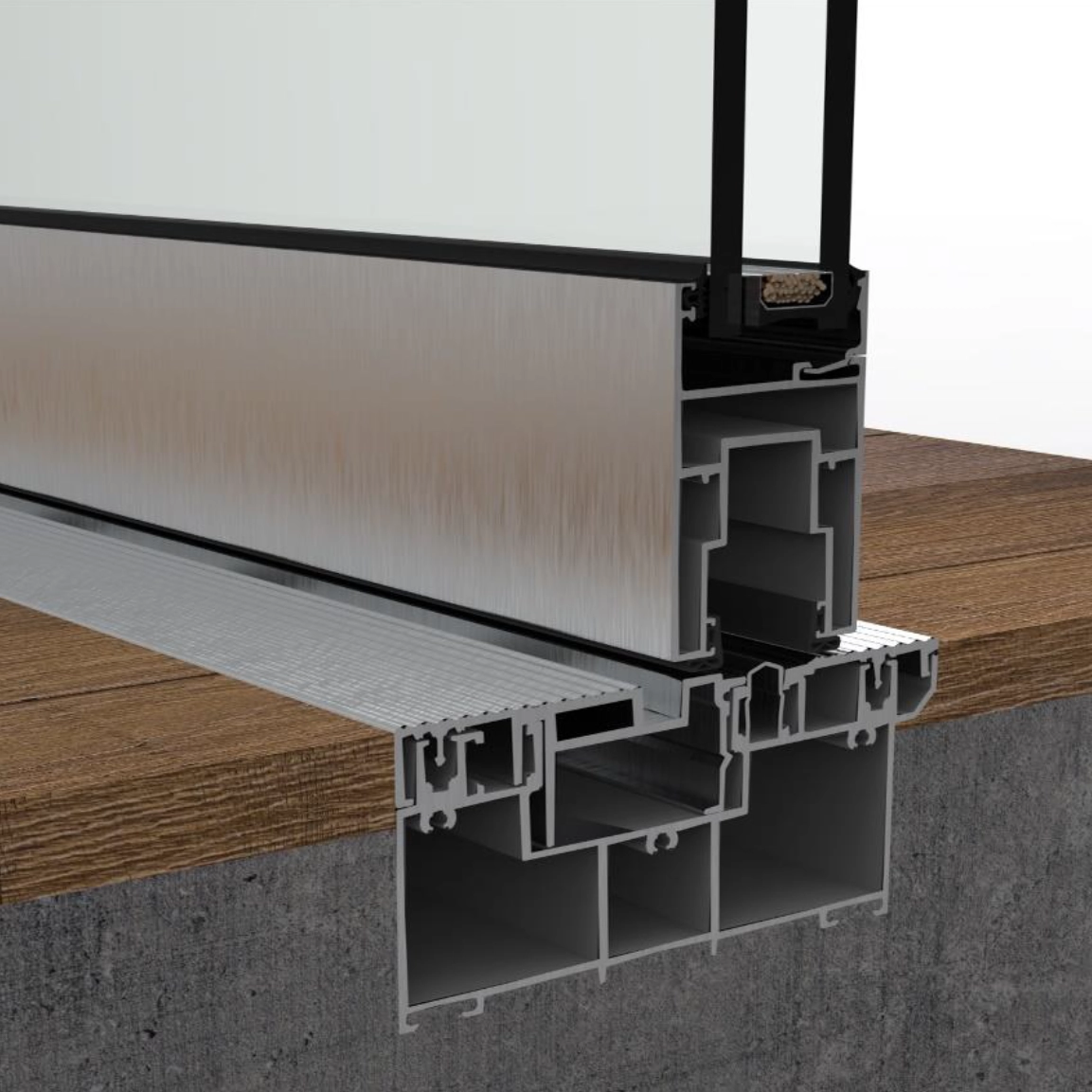

Typologies - Dynamic flush motion threshold.
- Full Panoramic Design
- Multi-track solutions available special design.
- Up to 4500mm vent height
- Up to 3000mm Vent Width
- Up to 500kg maximum sash weight
- 14mm minimum and 40mm
maximum glass thickness.
- Up to 9A EN & 600Pa ASTM water
tightness - Up to Class 4 EN & 300Pa ASTM
air tightness - Wind Load resistance up to
CE3000 EN & 3000Pa
Section Details

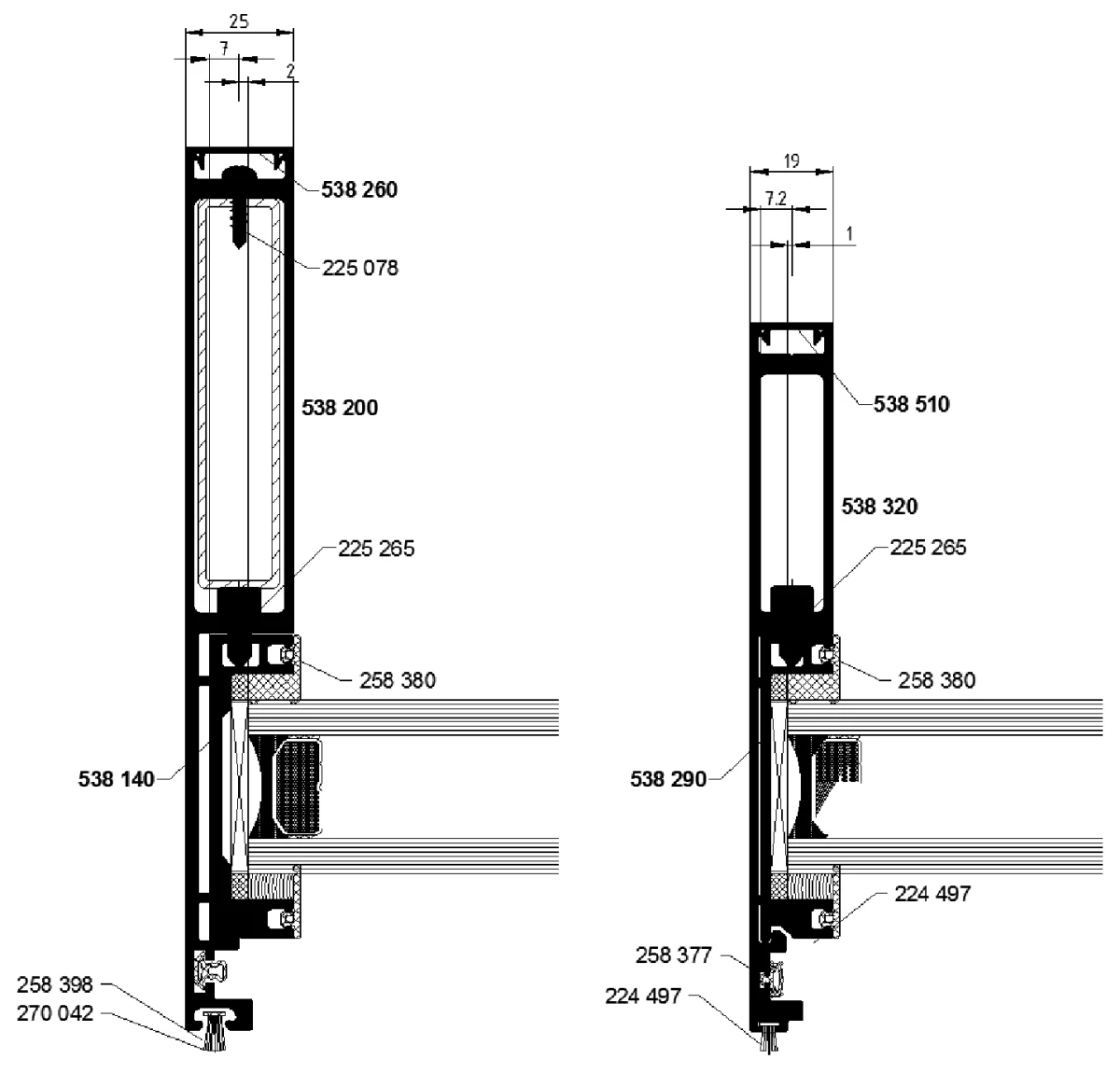

Interlock Options
Interlock Profile – 25mm & 19mm

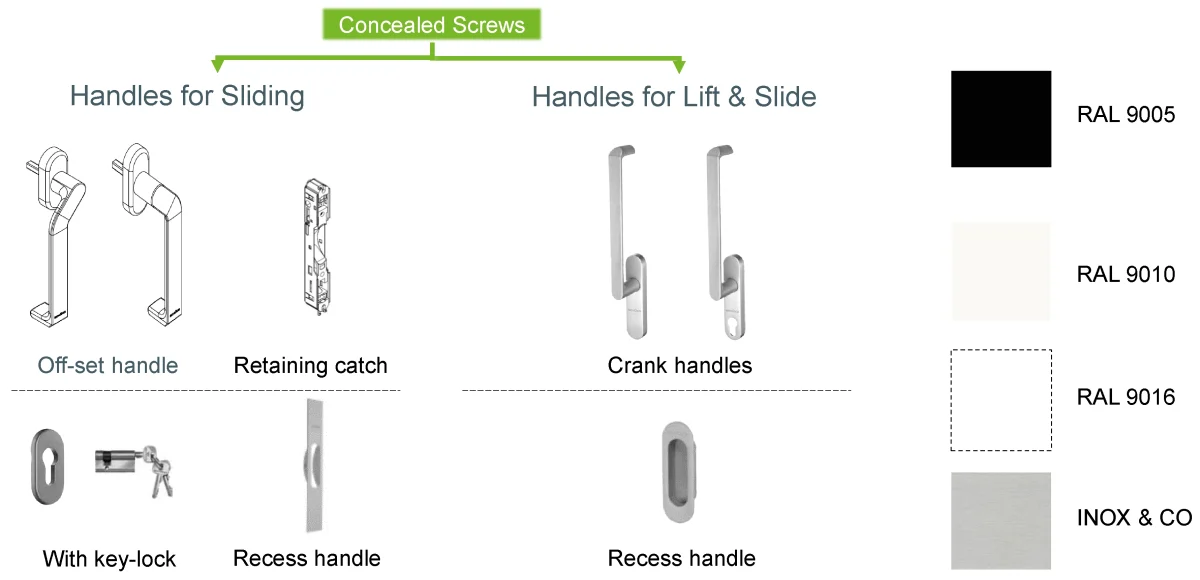

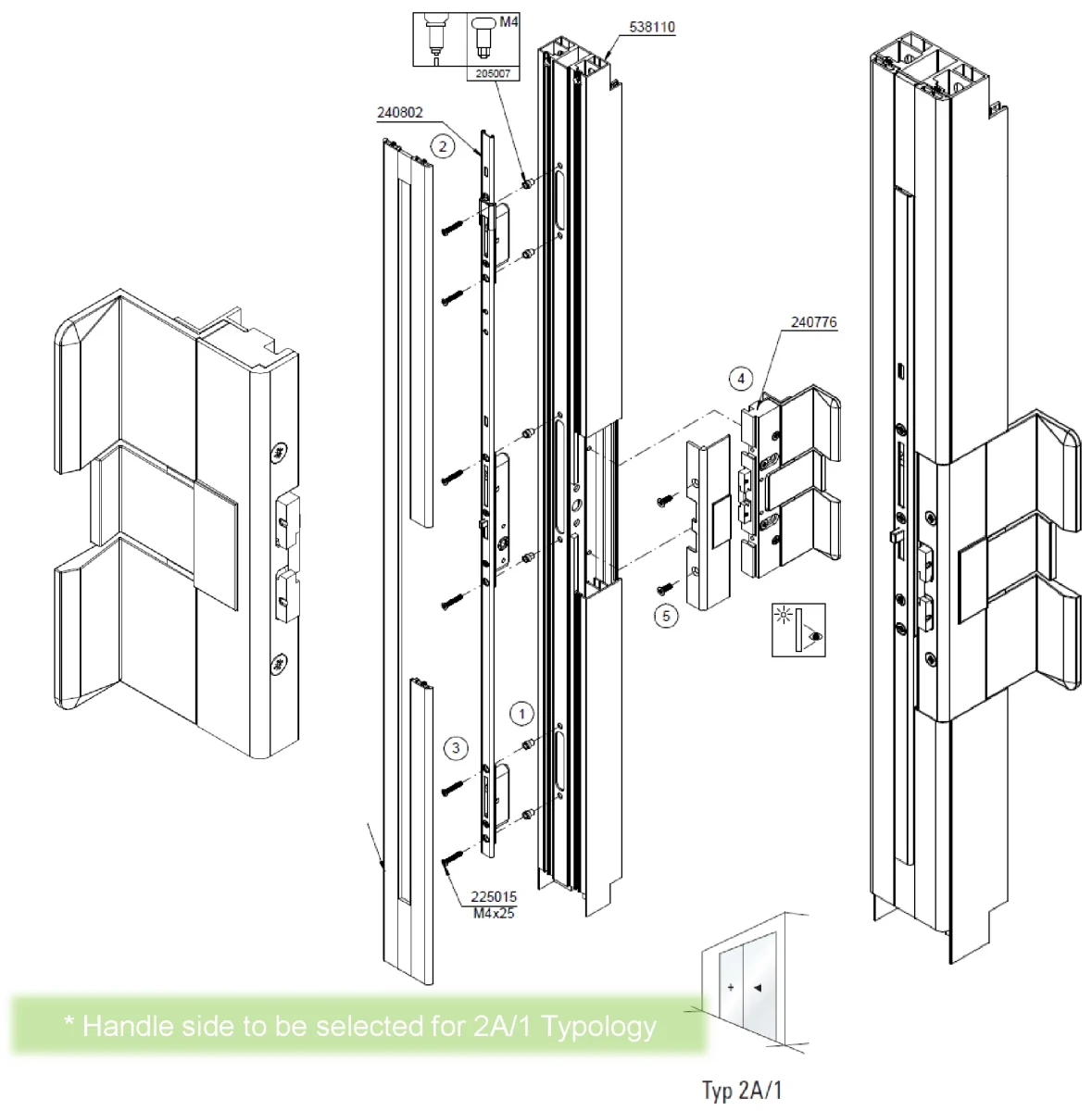

Accessories – Handle

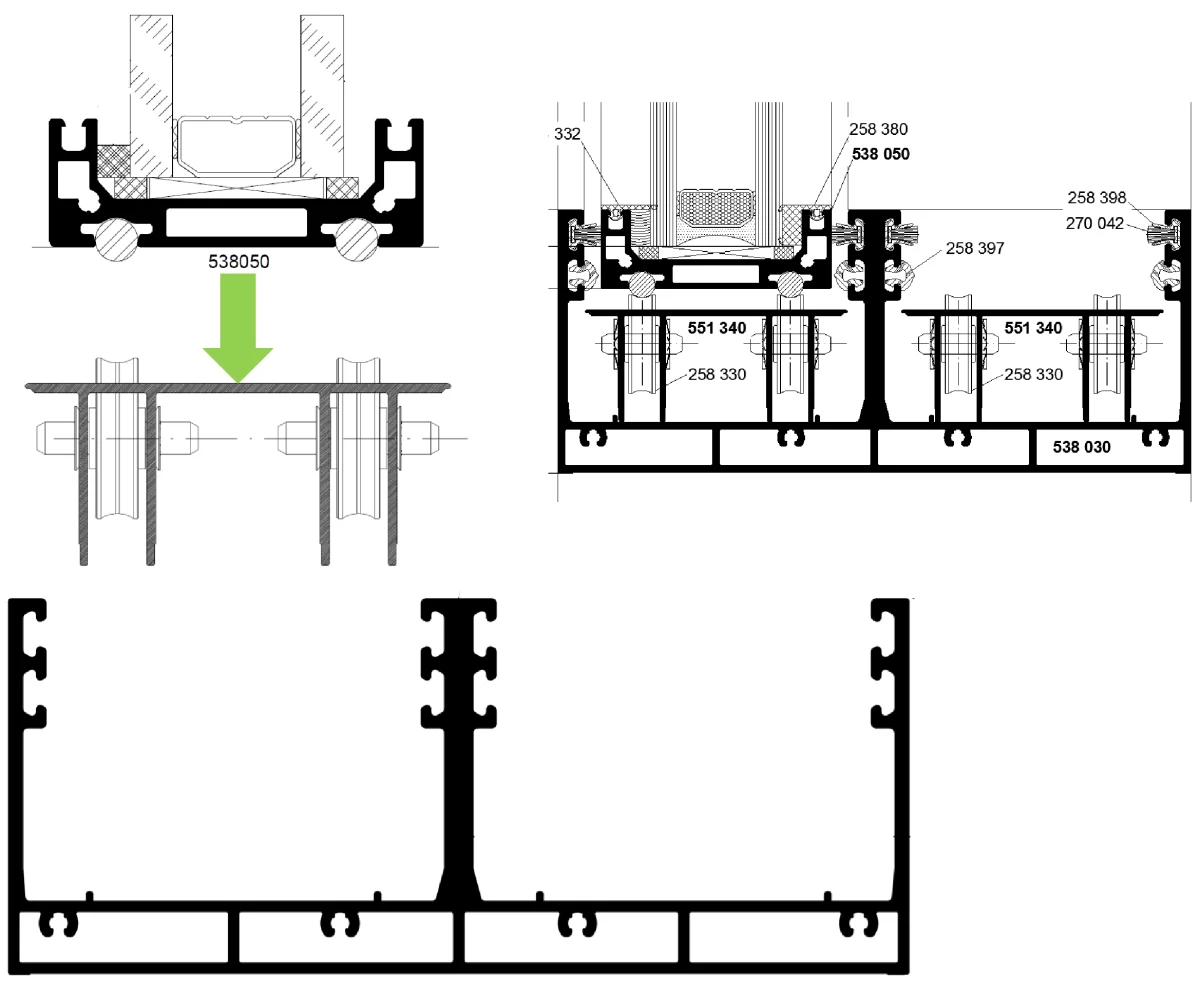

Rollers
System Test Performance
Windload resistance
3000 Pa / Class CE3000
Air permeability
300 Pa / Class 4
Water tightness
450 Pa / Class 9A
Durability
25,000 cycles

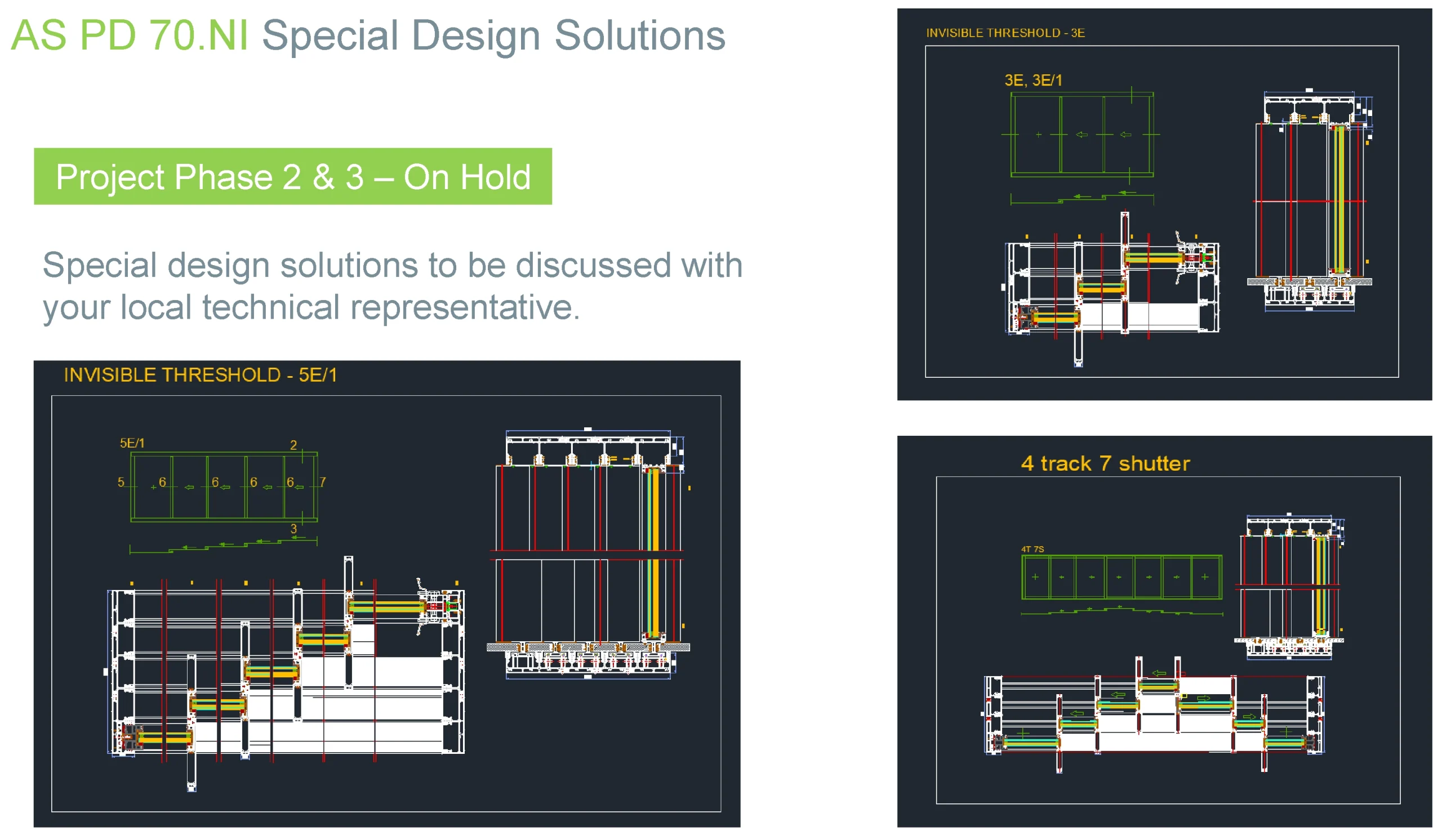

Special Design Solutions
